Manual Lever Hoist ,Model HSH-A Type
The HSH-A series lever hoist can be widely used for equipment installation,lifting and tightening goods ,dragging
loads in factories,mines,construction sites,power plants,boat manufacturing etc.it is an ideal device especially in
narrow space,open air and over-head places for pulling and stretching at angle.
Features
The HSH-A series lever hoist can be widely used for equipment installation,lifting and tightening goods ,dragging
loads in factories,mines,construction sites,power plants,boat manufacturing etc.it is an ideal device especially in
narrow space,open air and over-head places for pulling and stretching at angle.
Features

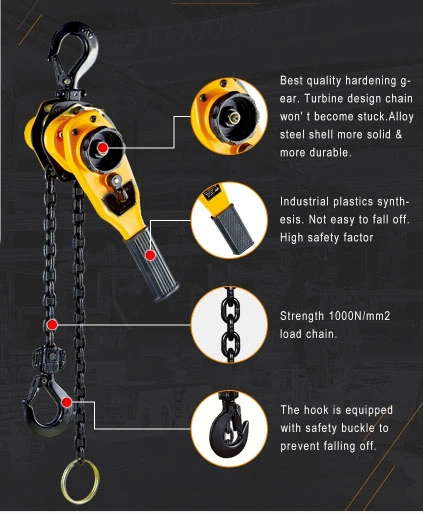

Forged hooks with reinforced safety latch
High quality powder coating
low-wear sintered brake linings
Load wheel with needle bearing
Extensive spare parts and maintenance service
Parameters
| Model | Rated Load (t) | Standard Lift (m) | Proof Load (KN) | Effort Required to Lift Rated Load (N) | NO.of Load Chain Fall Lines | Load Chains | Dimensions(mm) | N.W (kg) | Extra Weight Per Meter of Extra Lift(kg) | ||||||
| A | B | C | D | H | K | L | |||||||||
| HSH-A75 | 0.75 | 1.5 | 11 | 140 | 1 | 6 | 148 | 88 | 135 | 37 | 320 | 26 | 290 | 7.7 | 0.8 |
| HSH-A150 | 1.5 | 1.5 | 22.1 | 240 | 1 | 8 | 176 | 102 | 162 | 45 | 380 | 32.5 | 420 | 11.8 | 1.4 |
| HSH-A300 | 3 | 1.5 | 44.1 | 320 | 1 | 10 | 195 | 109 | 211 | 50 | 480 | 38 | 420 | 21 | 2.2 |
| HSH-A600 | 6 | 1.5 | 88.2 | 340 | 2 | 10 | 195 | 109 | 254 | 64 | 620 | 48 | 420 | 32 | 4.4 |
| HSH-A900 | 9 | 1.5 | 132.3 | 360 | 3 | 10 | 195 | 109 | 319 | 85 | 700 | 50 | 420 | 47 | 6.6 |
Our Service and Warranty
As a professional manufacturer, we provide follow services:
1. Lower price for sample, Competitive prices for distributors
2. ONE year warranty and life time maintenance
3. In time delivery.
4. High Quality assurance.
