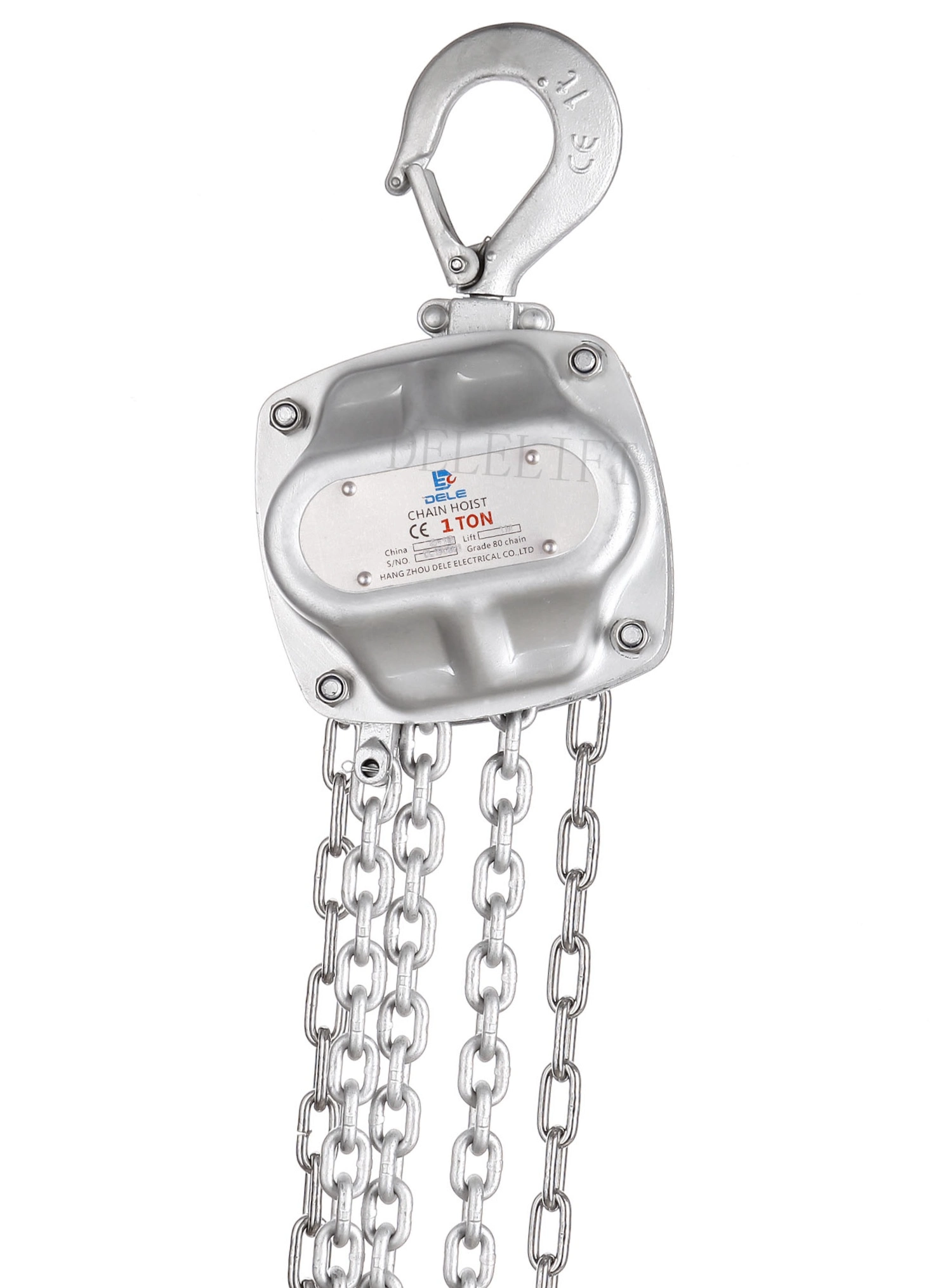

1ton*3m SubSea Proof-Corrosion Manual Chain block hand hoist
Make by standard:EN13157
1.chain hoist capacity range from 0.5ton-50ton.
2.compact sized design product suitable for all application.
3.suspension and load hooks are made of alloy steel,35CrMo treated heat and fitted with heavy duty safety latches,fitting groove and inspection points.
4.machined chain sprocket and gear provide smoother,more efficient operation.
5.hook with safety latch securely can rotate freely 360 degrees,
6.ergonomic handle design so that the hoist is easy to operate.
7.hoist have overload protection system.
8.gears are made up of 20CrMnTi material,which ensures toughness and better strength.
9.fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance.(comply with EN 818,safety factory 4)*load chain
marked with T8 marks as per EN 818-7.)
10.heavy duty guide rollers for avoiding slipage of load chain.
11.rugged construction featuring steel gear case and hand wheel cover for hand chain operation.
12.all hoists tested at 1.5times of Wll.
Make by standard:EN13157
1.chain hoist capacity range from 0.5ton-50ton.
2.compact sized design product suitable for all application.
3.suspension and load hooks are made of alloy steel,35CrMo treated heat and fitted with heavy duty safety latches,fitting groove and inspection points.
4.machined chain sprocket and gear provide smoother,more efficient operation.
5.hook with safety latch securely can rotate freely 360 degrees,
6.ergonomic handle design so that the hoist is easy to operate.
7.hoist have overload protection system.
8.gears are made up of 20CrMnTi material,which ensures toughness and better strength.
9.fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance.(comply with EN 818,safety factory 4)*load chain
marked with T8 marks as per EN 818-7.)
10.heavy duty guide rollers for avoiding slipage of load chain.
11.rugged construction featuring steel gear case and hand wheel cover for hand chain operation.
12.all hoists tested at 1.5times of Wll.
| Model | HSH | DF-B50 | DF-B100 | DF-B150 | DF-B200 | DF-B300 | DF-B500 | DF-B500 | DF-B1000 | DF-B2000 | DF-3000 | DF-5000 |
| Capacity load | (kg) | 500kg | 1000kg | 1500kg | 2000kg | 3000kg | 5000kg | 5000kg | 10000kg | 20000kg | 30000kg | 50000kg |
| Standard lift | (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 8 | 12 | 12 | |
| Force | (N) | 240 | 305 | 340 | 360 | 370 | 370 | 370 | 380 | 380 | 400 | 390 |
| Running testload | (kg) | 750 | 1500 | 2250 | 3000 | 4500 | 7500 | 7500 | 15000 | 30000 | 45000 | 75000 |
| Load chain diameter×Number of falls | (mm) | 5*15 | 6*18 | 8*24 | 8*24 | 10*30 | 11.2*31 | 10*30 | 10*30 | 10*30 | 10*30 | 11.2*31 |
| Hang chain diameter×Number of falls | (mm) | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 |
| Net weight | (kg) | 5.7 | 11 | 17 | 17 | 26 | 37 | 40 | 73 | 176 | 258 | 425 |
| packing weight | (kg/m) | 6 | 11.5 | 17.6 | 17.6 | 26.5 | 38.5 | 40.6 | 73.6 | 200 | 285 | 465 |
| packing size | (cm) | 27.5*14.5*15.5 | 28*17*18.5 | 31*17.5*22 | 31*17.5*22 | 39*19*26 | 44*24*26 | 58*46.5*24.5 | ||||
| add 1m load chain N.W | (kg) | 0.541 | 0.77 | 1.36 | 1.36 | 2.2 | 2.5 | 4.4 | 6.6 | 17.6 | 26.4 | 30 |
| add 1m hand chain N.W | (kg) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 1.8 | 1.8 | 1.8 |
| Dimensions(mm) | a | 122 | 152 | 176 | 176 | 216 | 260 | 216 | 244 | 429 | 533 | 570 |
| b | 34 | 40 | 52 | 52 | 62 | 65 | 65 | 70 | 125 | 150 | 190 | |
| c | 118 | 145 | 170 | 170 | 204 | 248 | 204 | 204 | 105 | 105 | 125 | |
| d | 31 | 31 | 41 | 41 | 45 | 51 | 54 | 376 | 373 | 445 | ||
| e | 119 | 145 | 157 | 157 | 167 | 184 | 167 | 167 | 222 | 220 | 279 | |
| f | 65 | 79 | 81 | 81 | 83 | 96 | 83 | 83 | 113 | 109 | 140 | |
| Hmin | 311 | 361 | 443 | 443 | 431 | 576 | 660 | 705 | 1100 | 1139 | 15000 |
